Design features
Architectural style: flat modern, contemporary design.
Options
Available with:
- various finishes in a wide range of RAL colours
Application type
Suitable for new construction and renovation.

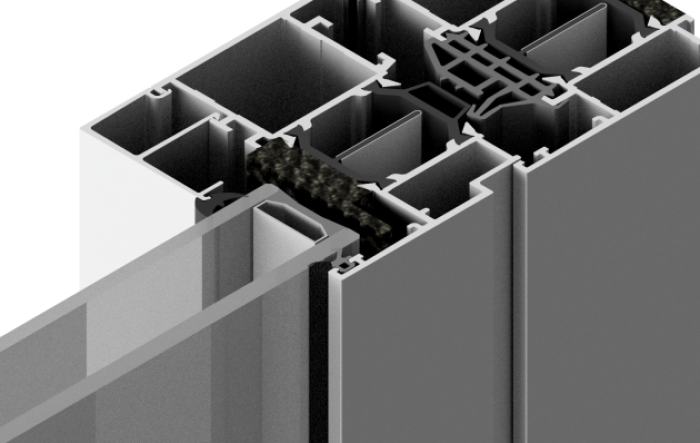

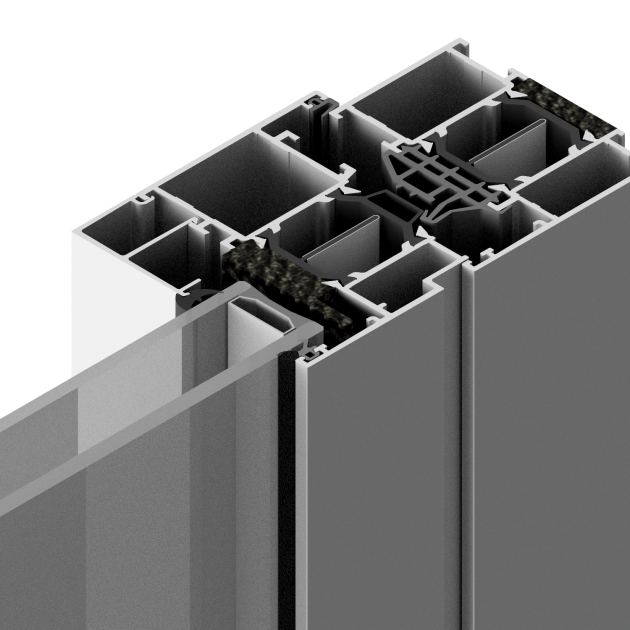

TRITON ALUMINIUM PIVOT DOORS
CATEGORY
Casement Doors
Description
Triton was specially designed to meet the contemporary requirements of modern new-build and renovation homes. It's a multi-point locking mechanism pivot door system with excellent thermal performance for optimised internal comfort and energy reduction.
- OVERVIEW
- TECHNICAL DATA
- DOWNLOAD COLLATERAL
| TRITON PIVOT | |
|---|---|
| Performances | |
| Uw value W/m²K (Double glazing) : | from 1.31 |
| Uw value W/m²K (Triple glazing) : | from 0.95 |
| Size limits | |
| frame_dimension : | 72mm |
| Min glass thickness (mm) : | 10mm |
| Max glass thickness (mm) : | 66mm |
| Max sash width (mm) : | 2000mm |
| Max sash height (mm) : | 3000mm |
| Maximum sash load (kg) : | 300KG |
| Solutions | |
| Vertical pivot : | yes |
