CLASSIC ALUMINIUM SLIDING DOORS

CATEGORY

Sliding Doors

Description

Sliding doors’ large panes of glass make it possible to enjoy natural light throughout the day while the option for two to three tracks and up to six panels offer the versatility to turn your designs into reality.

Bespoke rollers have been designed to ensure smooth, easy operation of these large glass doors. In addition to our normal sliders, we also offer lift & slide solutions which make the already amazing experience even more effortless; thanks to a unique mechanism developed by our engineers, the whole sash can be lifted with only the lightest touch. There is also an upgraded version with 50mm slim interlock for extraordinary views.

  • OVERVIEW
  • TECHNICAL DATA
  • DOWNLOAD COLLATERAL

Design features

AluK classic sliding doors are available in a variety of series, each with its own distinct look and feel. Each option offers an assortment of configurations and varying levels of performance.

Options

Available with:

  • Novae handle

Application type

The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

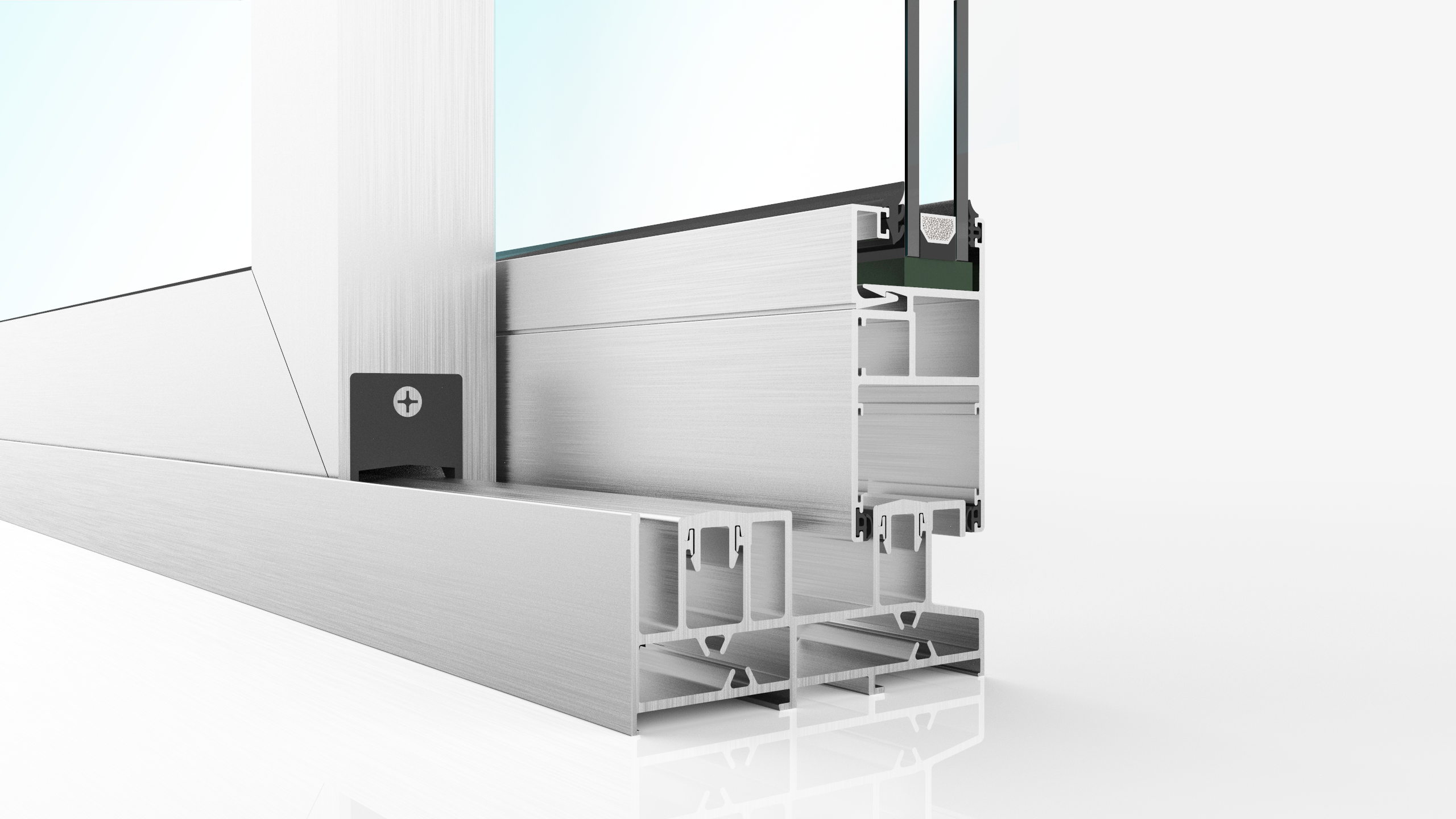

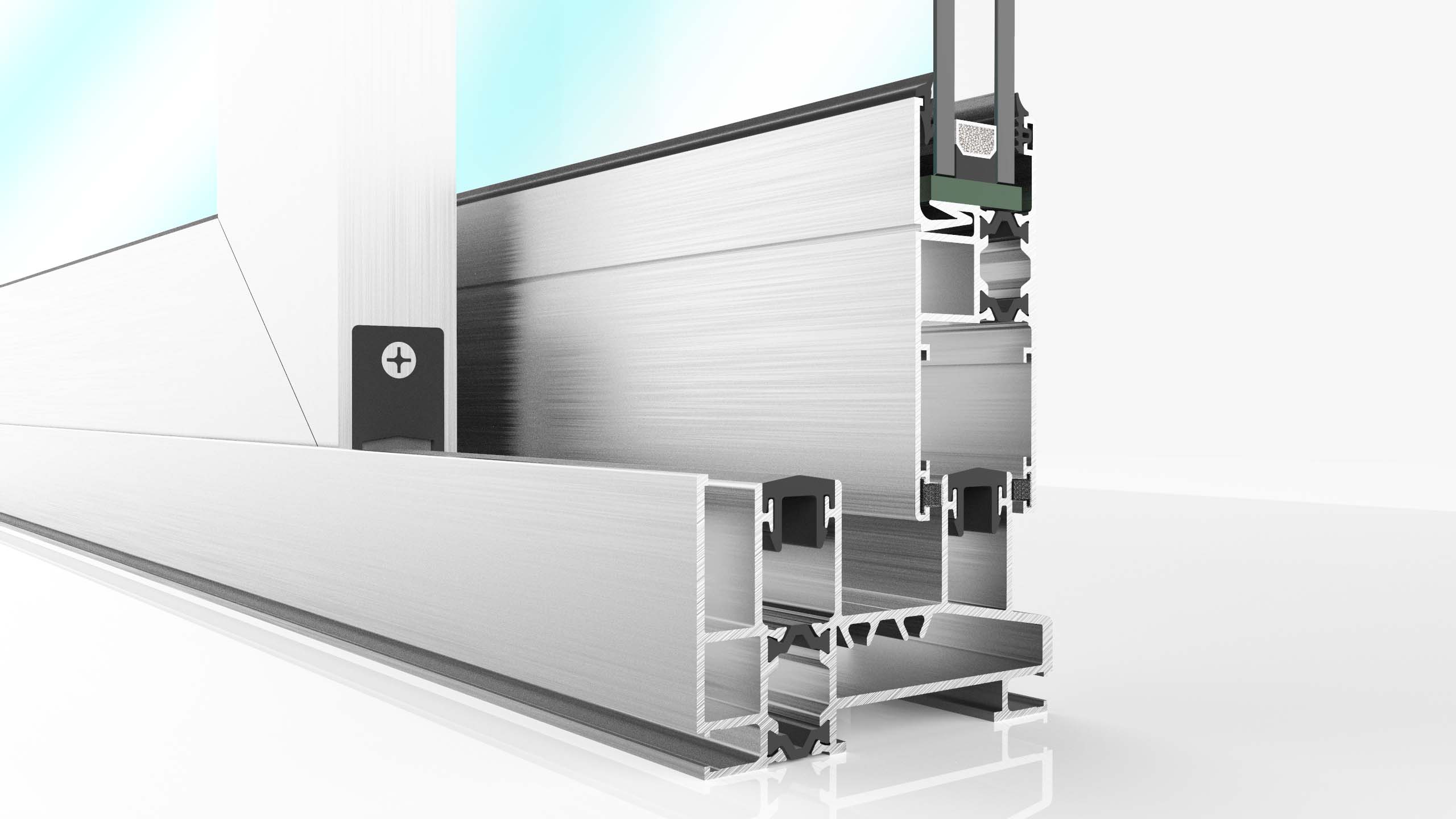

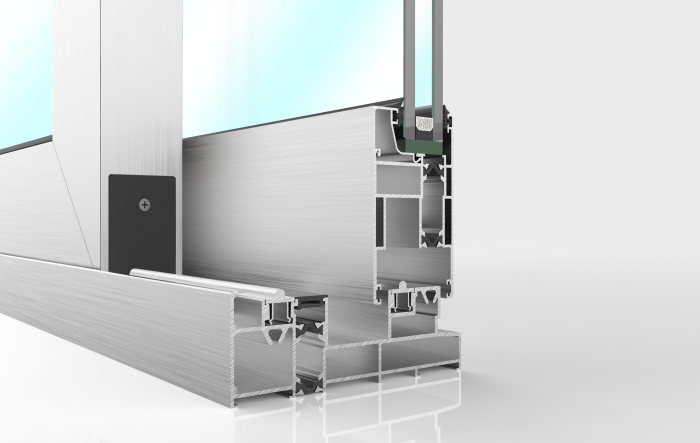

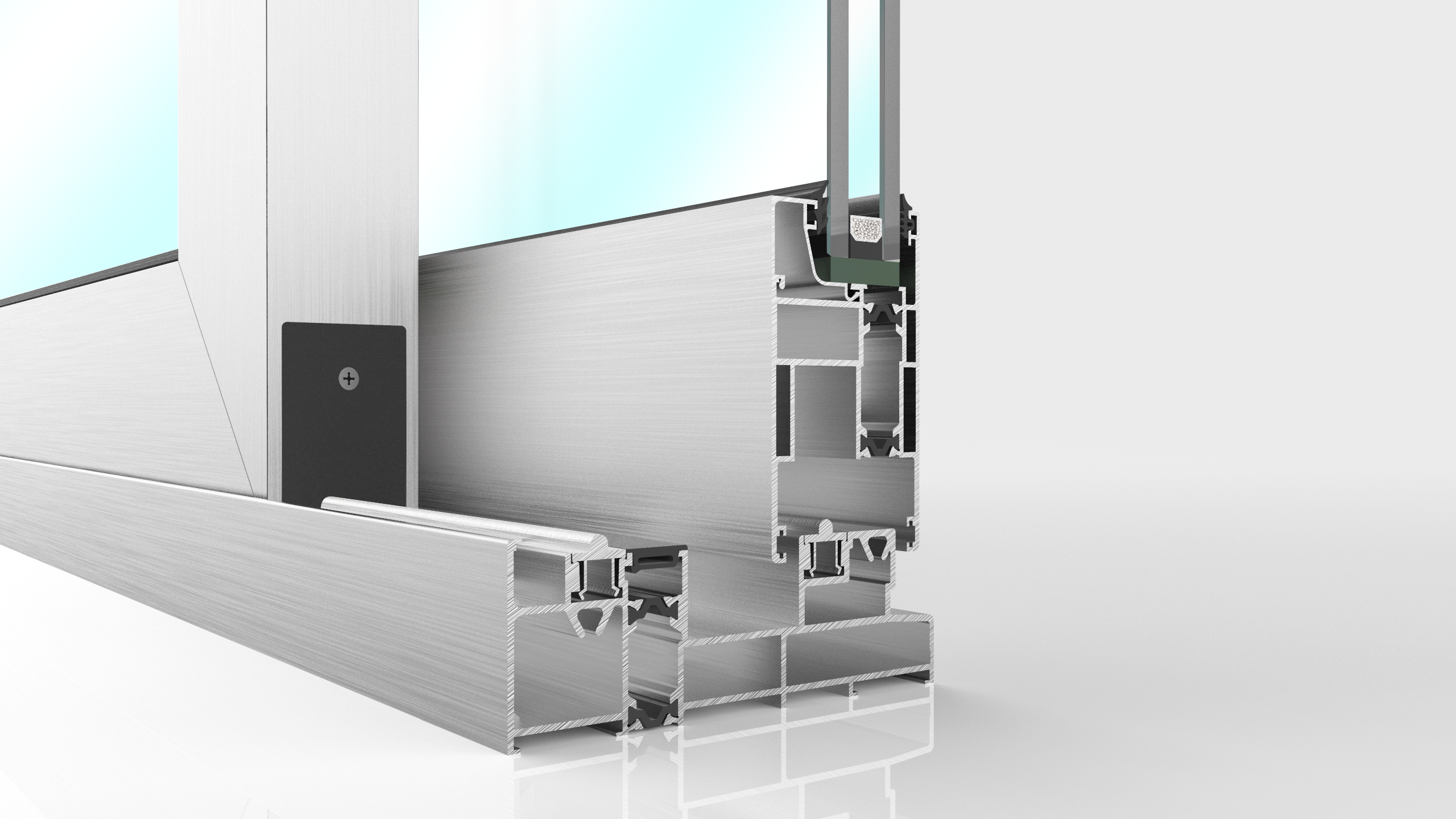

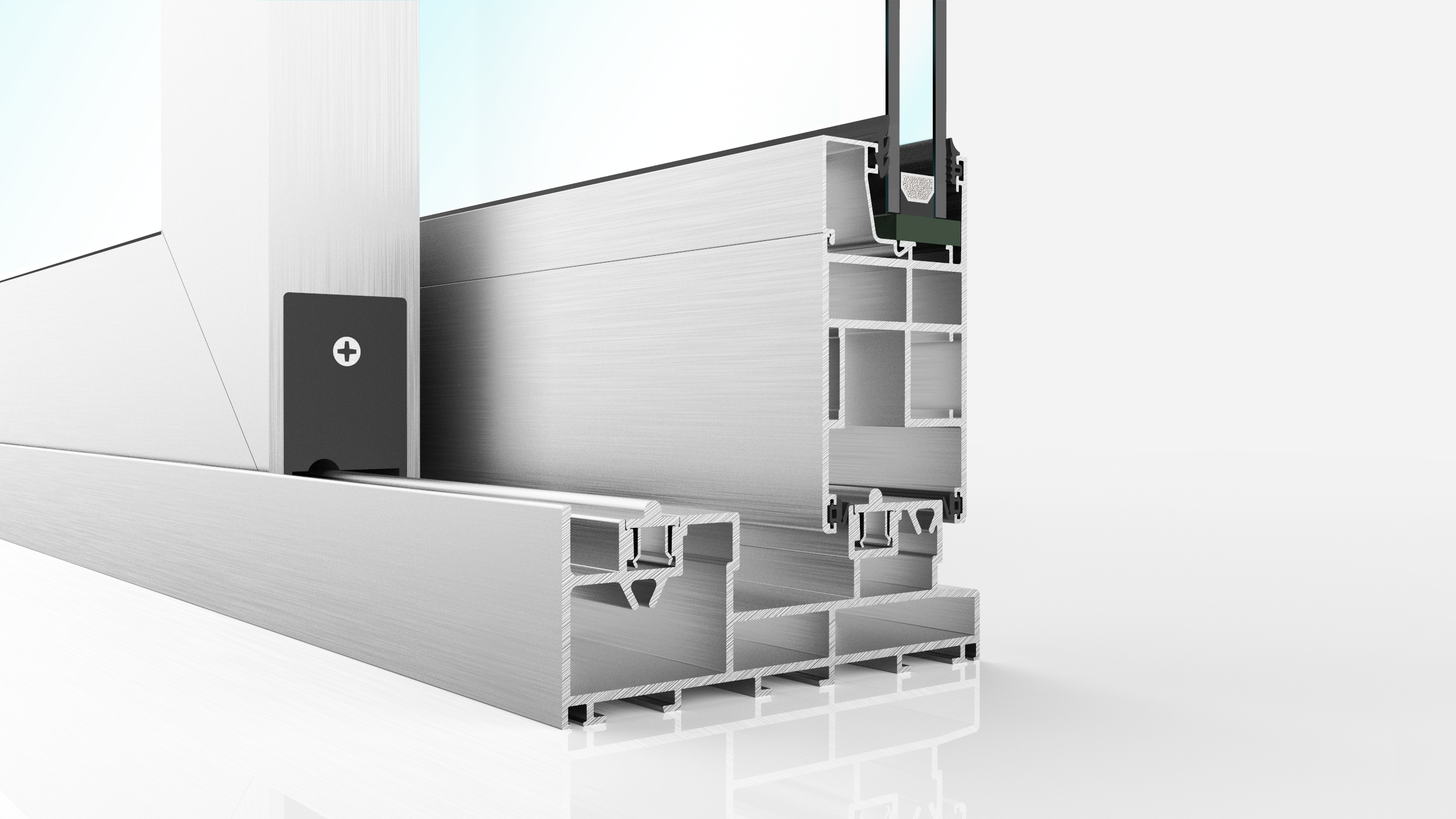

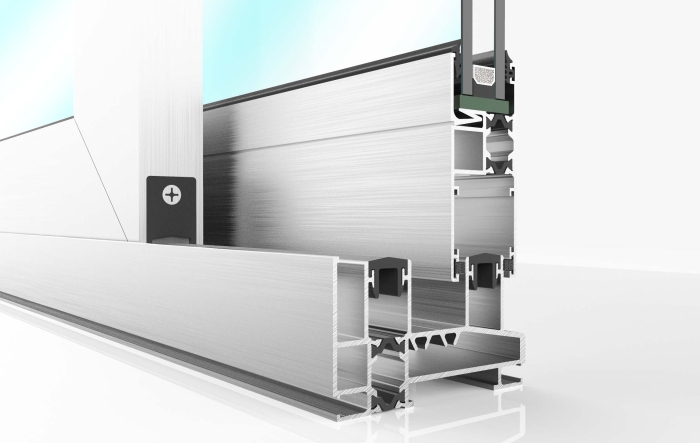

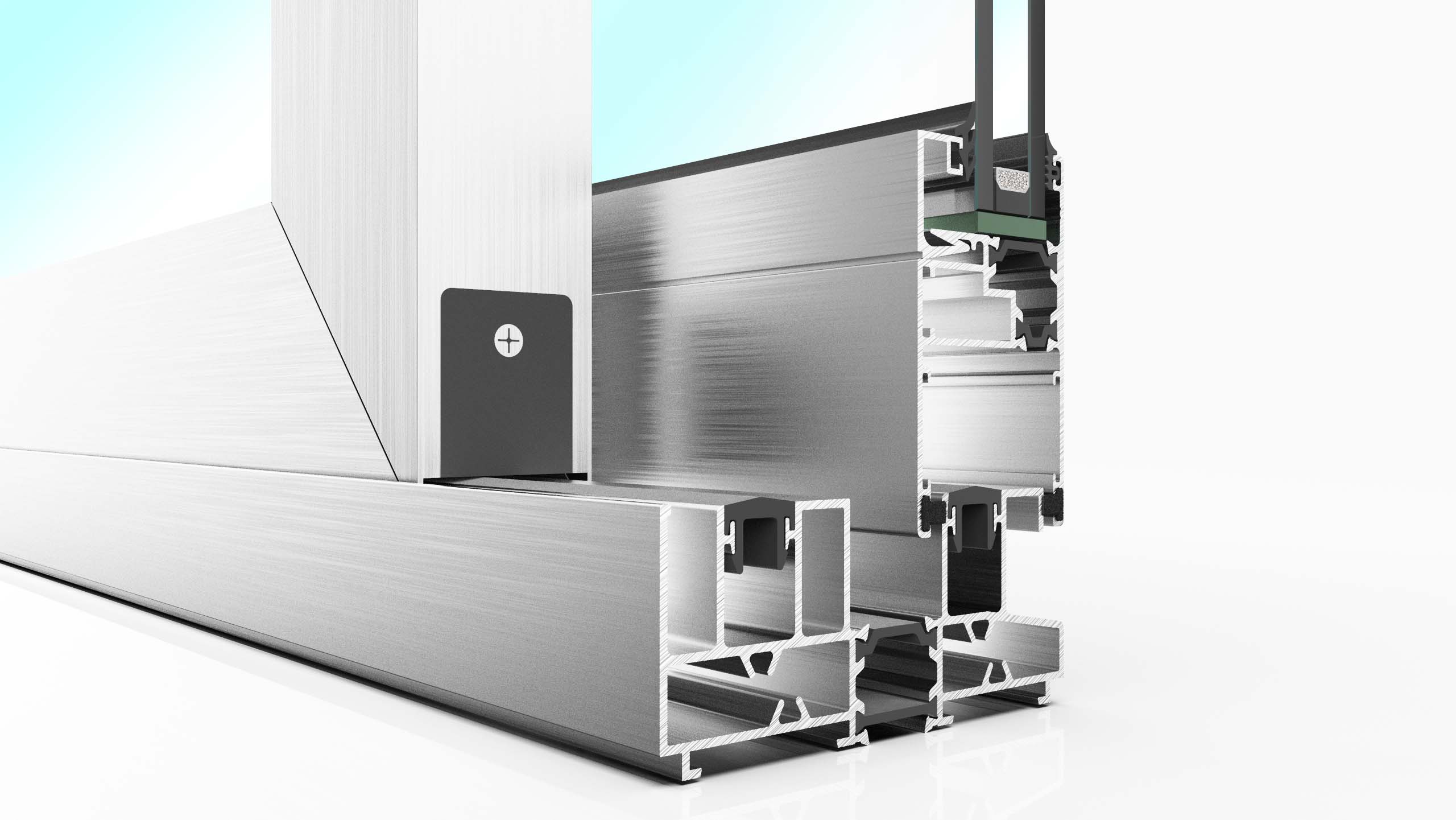

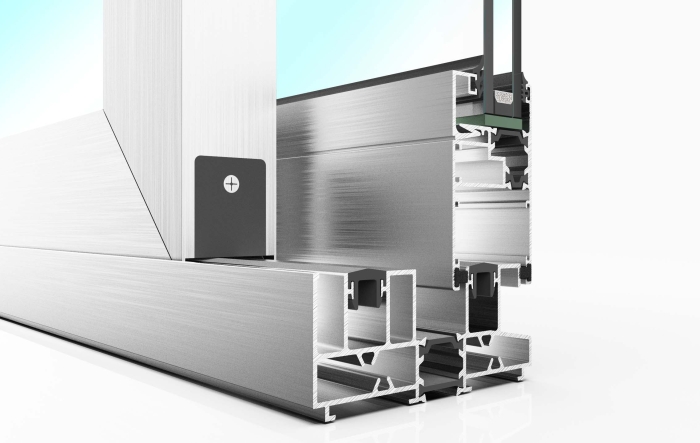

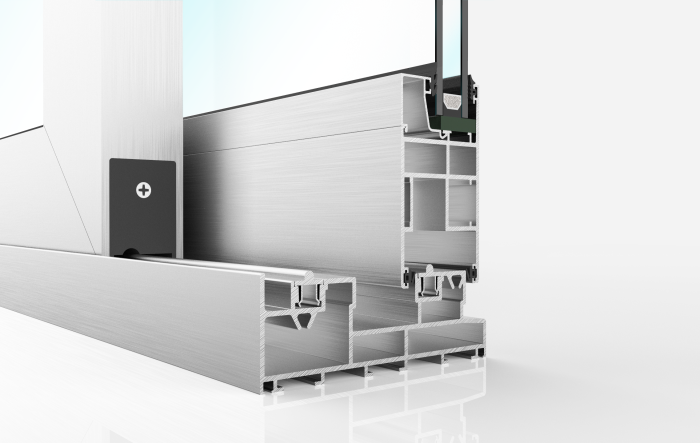

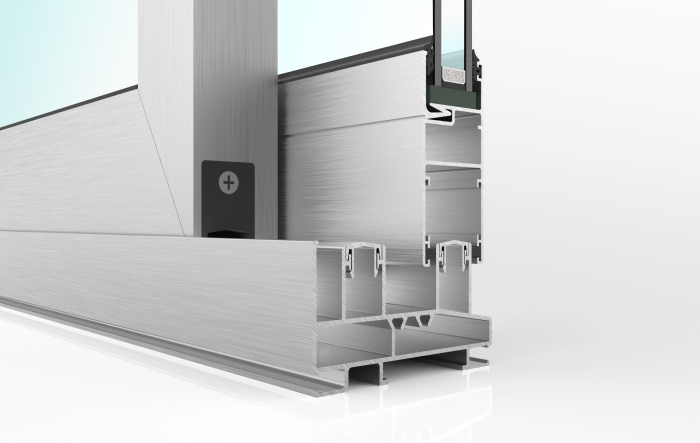

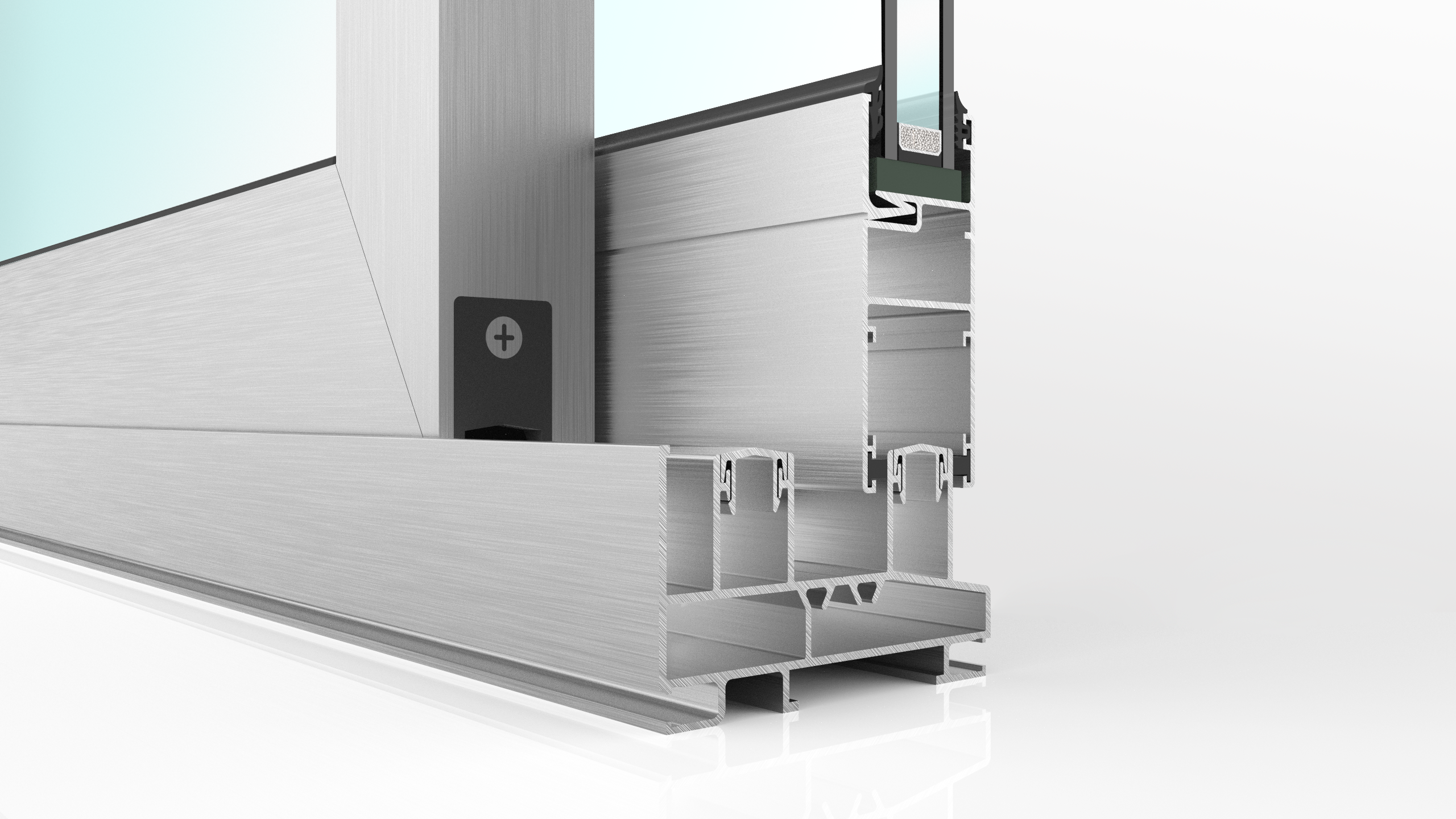

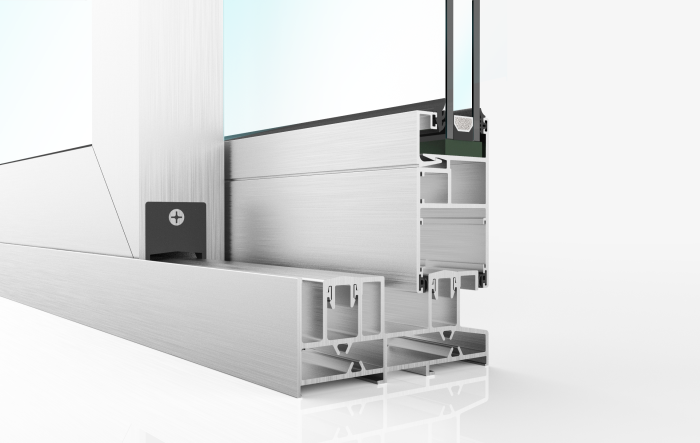

  SC95TT SC115TT SC140TT SC95 SC115 SC140
Performances
Uw value W/m²K (Double glazing) : from 2.15 from 1.90 from 2.03 / / /
Uw value W/m²K (Triple glazing) : from 1.67 from 1.47 from 1.50 / / /
Size limits
frame_dimension : 95mm 115mm 140mm 95mm 115mm 140mm
Min glass thickness (mm) : 6mm 20mm 20mm 6mm 20mm 20mm
Max glass thickness (mm) : 24mm 36mm 40mm 24mm 36mm 40mm
Max sash width (mm) : 1500mm 1500mm 2600mm 1500mm 1500mm 2600mm
Max sash height (mm) : 2600mm 2600mm 2800mm 2600mm 2600mm 2800mm
Maximum sash load (kg) : 150KG 150KG 200/300/400/500KG 150KG 150KG 200/300/400/500KG
