CATEGORY
Casement Windows
AluK KA premium open-out windows are designed with flush surface, which brings a touch of elegance to the interior. It can be applied together with KA premium turn & tilt windows for the overall project.
It can also realize 90° external opening and 80KG max sash load with heavy duty arms, which enables the freedom of large sash design. At the same time, it's available with central gasket for excellent thermal performance, with k value below 1.40W/m²K.
Designed with flush surface, which brings a touch of elegance to the interior.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

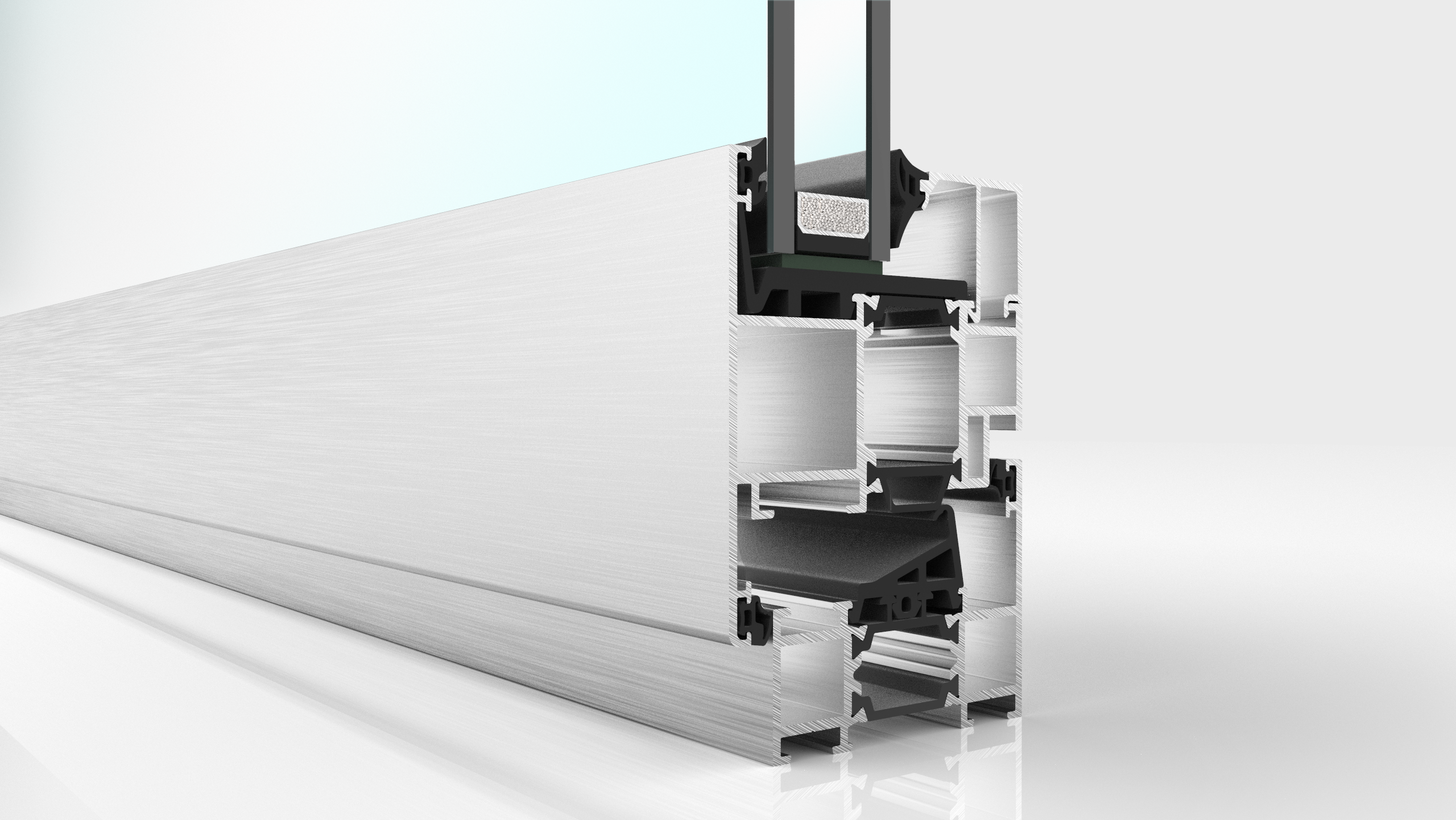

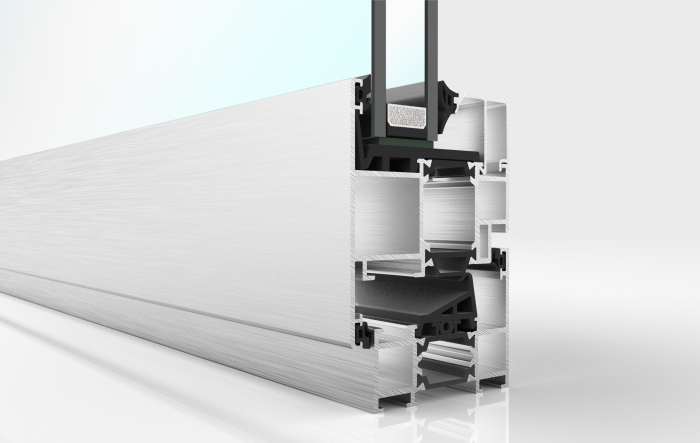

| C67KA OPEN OUT | |
|---|---|
| Performances | |
| Uw value W/m²K (Double glazing) : | from 1.57 |
| Uw value W/m²K (Triple glazing) : | from 1.15 |
| Size limits | |
| Max glass thickness (mm) : | 52mm |
| Max sash width (mm) : | 1200mm |
| Max sash height (mm) : | 2200mm |
| Maximum sash load (kg) : | 50KG / 80KG |
| Solutions | |
| Outward opening : | yes |
