Casement Windows
As one of the leading system solution provider of windows, doors and façades, we are dedicated to ongoing research and innovation. Our products are also making breakthroughs in terms of appearance, performance and experience.
KA Slim inherits the minimalist design concept of KA series and is even much slimmer in terms of frame + sash width which is about 30% less compared to traditional windows. It also has high thermal insulation and excellent acoustic performance, providing luxurious & comfortable living experience!
Much slimmer in terms of frame + sash width which is about 30% less compared to traditional windows.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

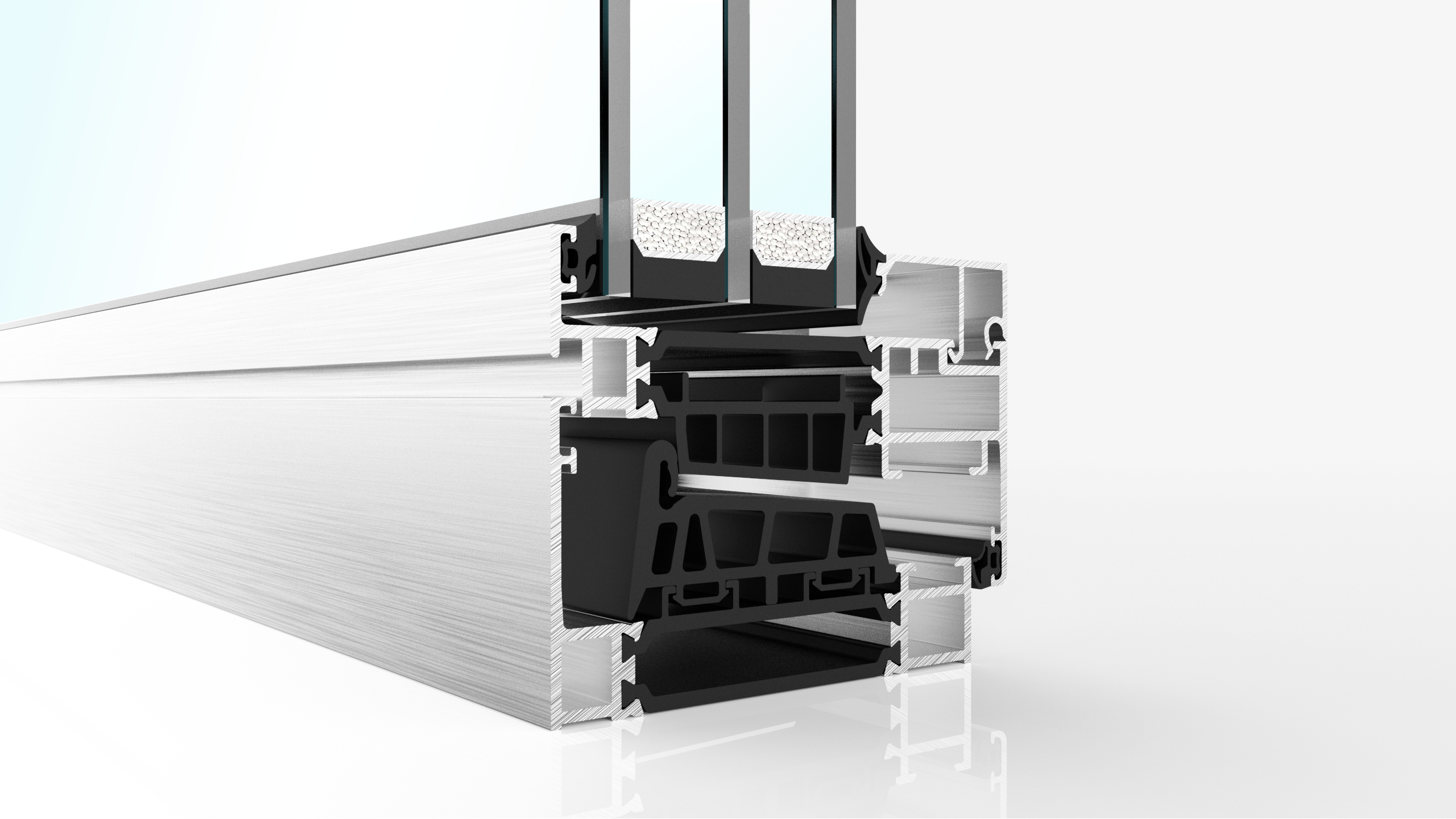

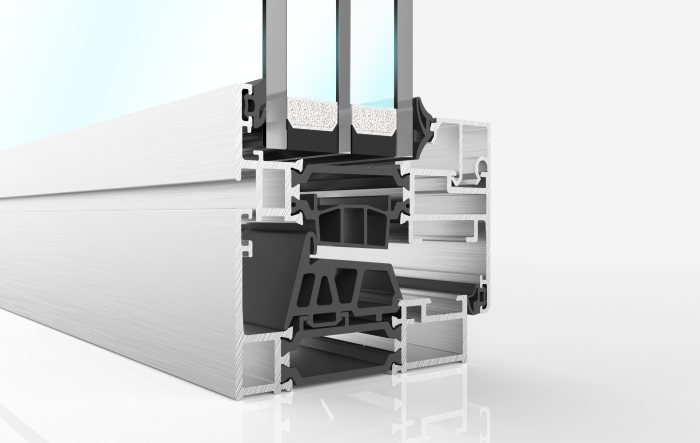

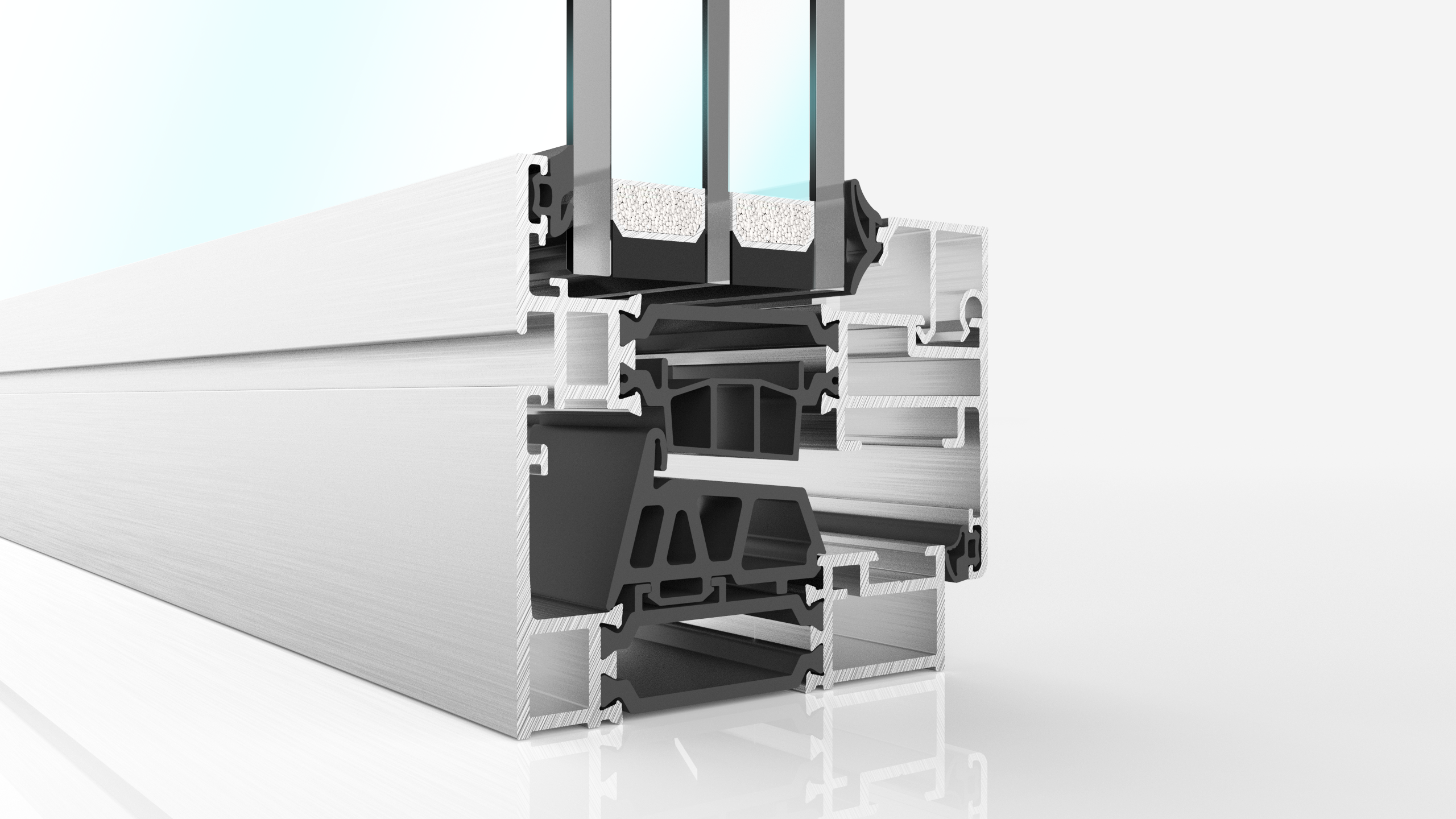

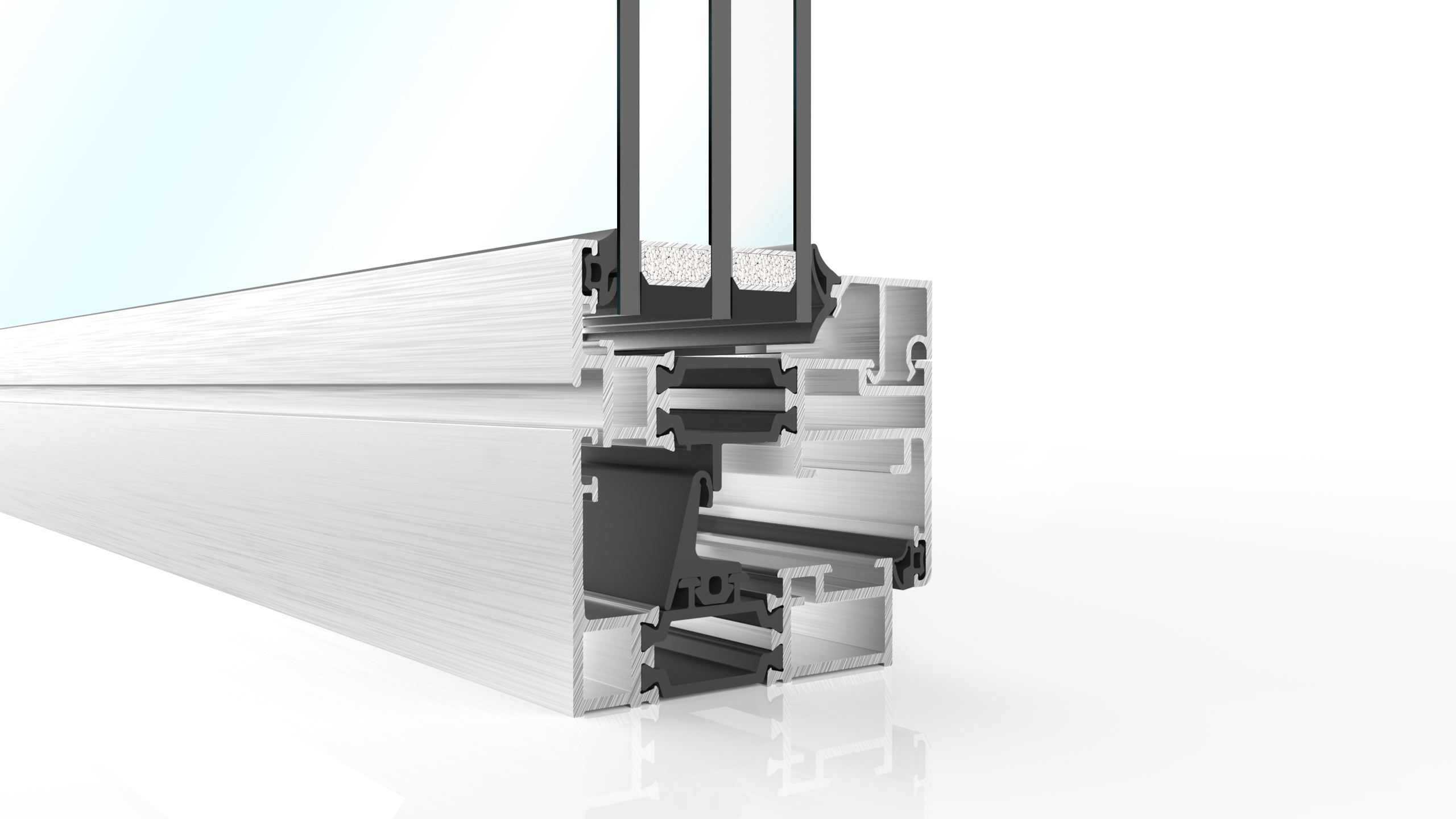

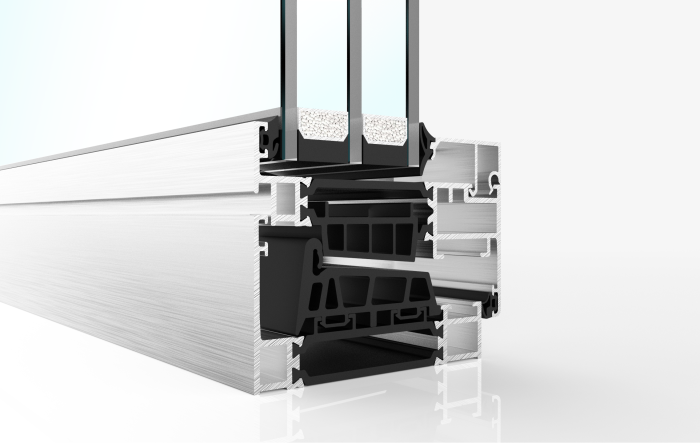

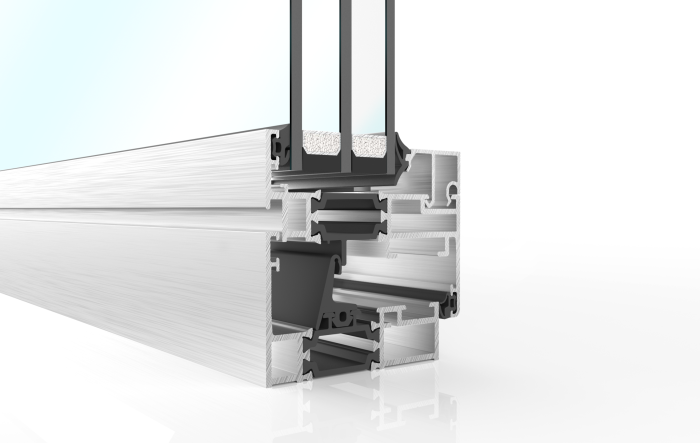

| C67KA SLIM | C77KA SLIM | C90KA SLIM | |
|---|---|---|---|
| Performances | |||
| Uw value W/m²K (Double glazing) : | from 1.52 | from 1.36 | from 1.25 |
| Uw value W/m²K (Triple glazing) : | from 1.04 | from 0.87 | from 0.77 |
| Size limits | |||
| Max glass thickness (mm) : | 52mm | 62mm | 75mm |
| Max sash width (mm) : | 1200mm | 1200mm | 1200mm |
| Max sash height (mm) : | 1800mm | 1800mm | 1800mm |
| Maximum sash load (kg) : | 110KG for 110°，100KG / 150KG for 180° | 110KG for 110°，100KG / 150KG for 180° | 110KG for 110°，100KG / 150KG for 180° |
| Solutions | |||
| Inward opening : | yes | yes | yes |
| Tilt & turn : | yes | yes | yes |
