Casement Windows
Turn & tilt casement windows are very popular in Europe. The sash can be opened in turn or tilt mode through the operation of the handle.
In most cases, the sash will be under tilt mode for natural ventilation.
May operate the handle and turn the sash for quick ventilation if need. And it's much easier and safer to clean the sash inside.
Excellent performance in terms of air permeability, water tightness, wind resistance, thermal insulation and sound reduction.
Available with AluK Novae handle.
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

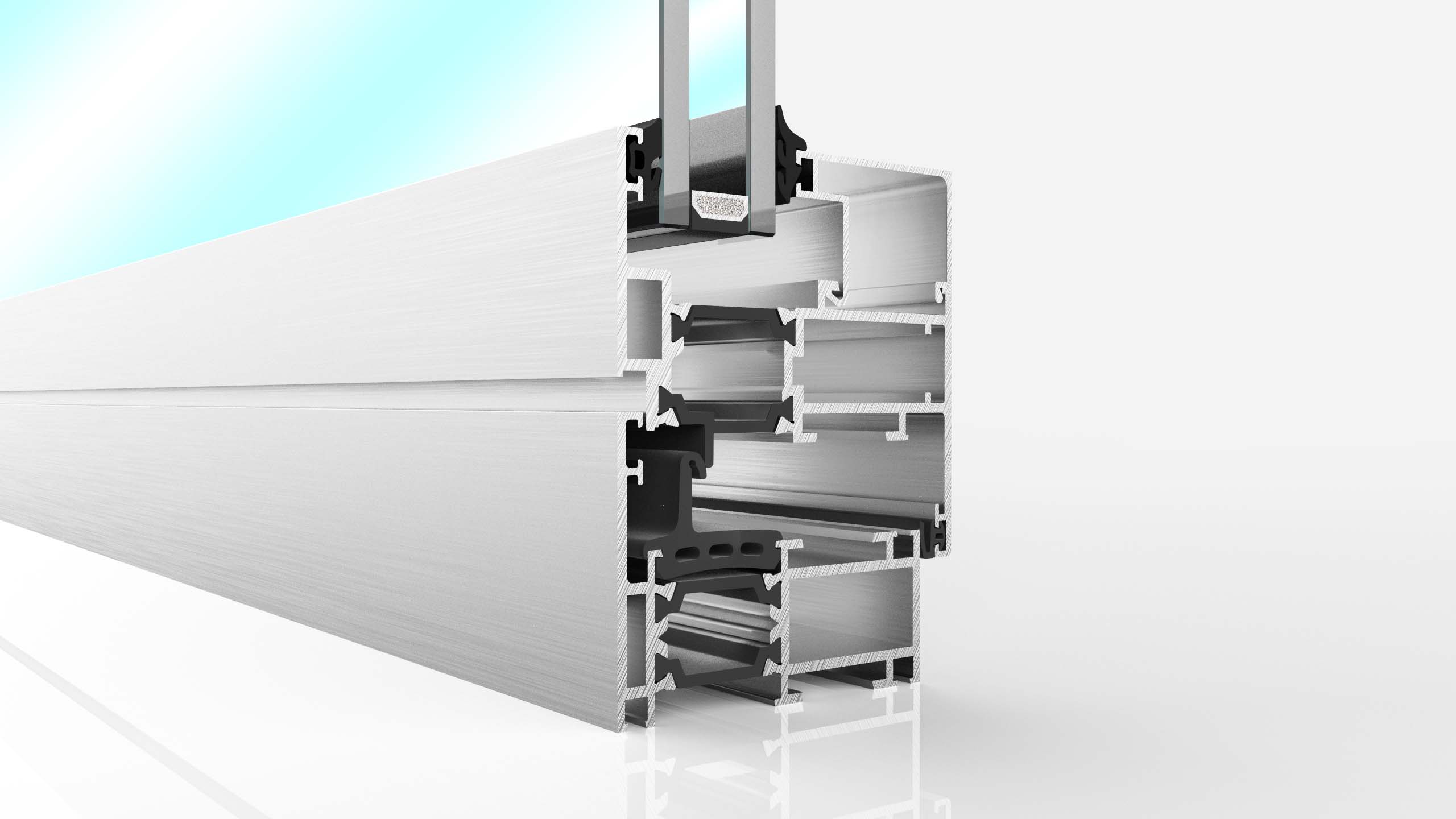

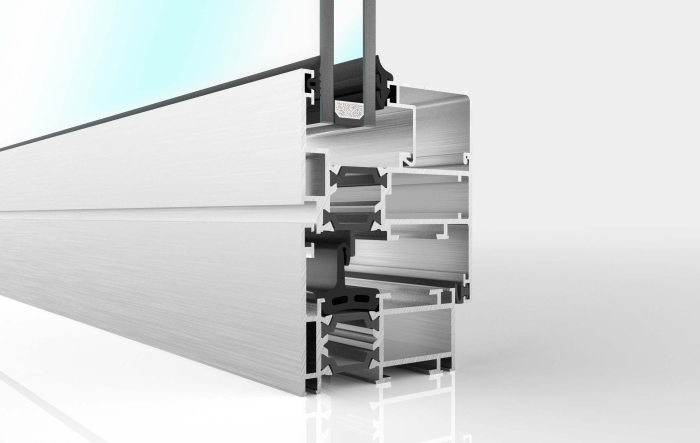

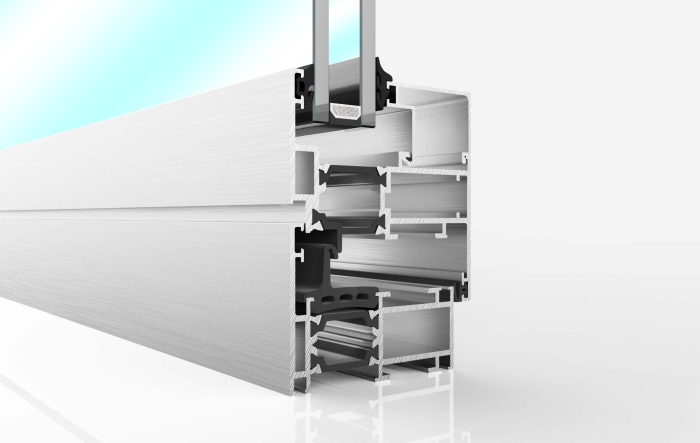

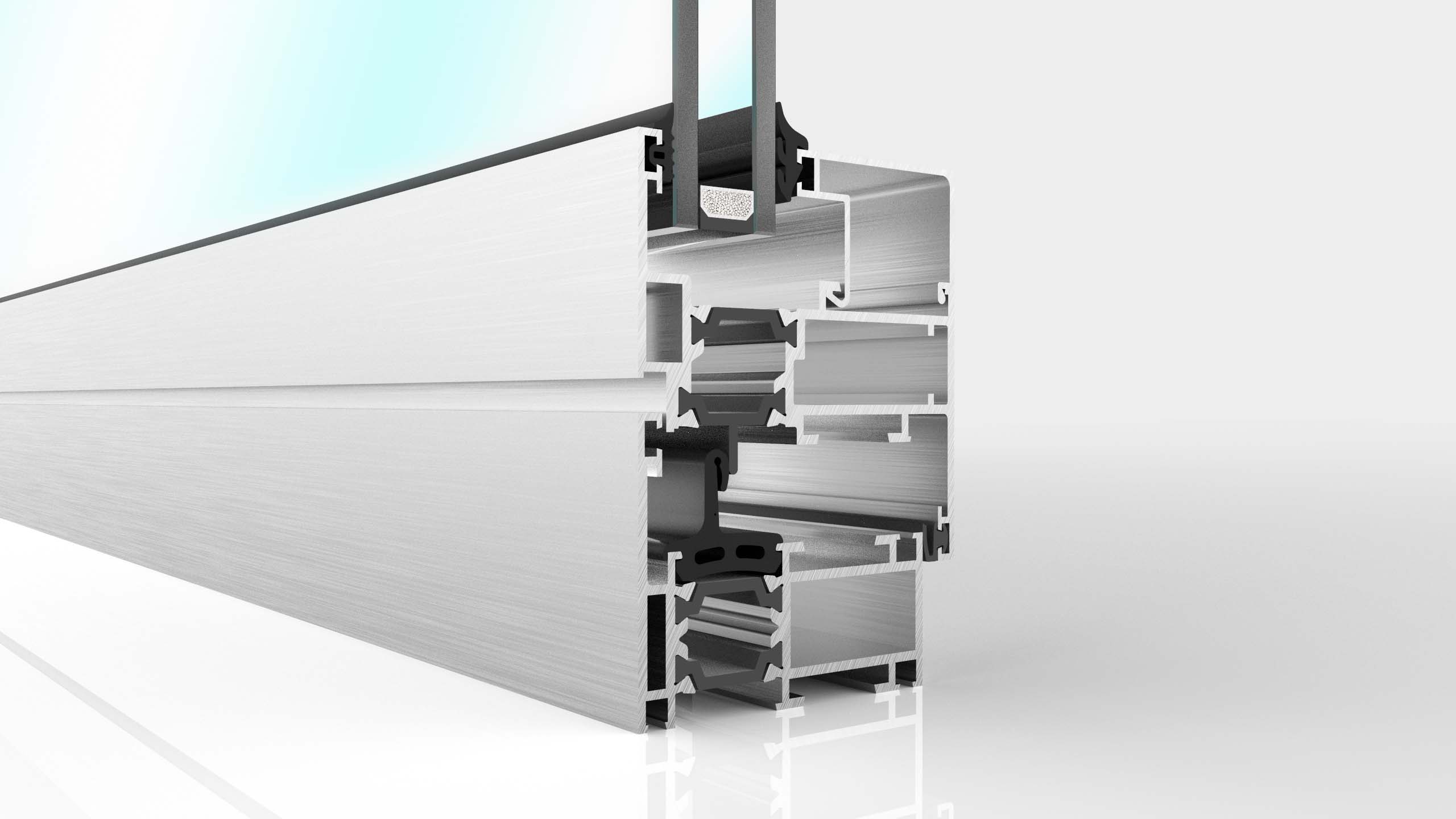

| 70TT | 75TT | |
|---|---|---|
| Performances | ||
| Uw value W/m²K (Double glazing) : | from 1.79 | from 1.70 |
| Uw value W/m²K (Triple glazing) : | from 1.38 | from 1.25 |
| Size limits | ||
| Max glass thickness (mm) : | 45mm | 50mm |
| Max sash width (mm) : | 1500mm | 1500mm |
| Max sash height (mm) : | 2100mm | 2100mm |
| Maximum sash load (kg) : | 130KG | 130KG |
| Solutions | ||
| Inward opening : | yes | yes |
| Tilt & turn : | yes | yes |
