Design features
- double overlap
- frame/sash depth : 45 mm
Options
- inward or outward opening
Application type
Residential and commercial sector applications, like apartments, villas, hotels, stores, etc.
NON-INSULATED ALUMINIUM CASEMENT WINDOWS
CATEGORY
Casement Windows
Description

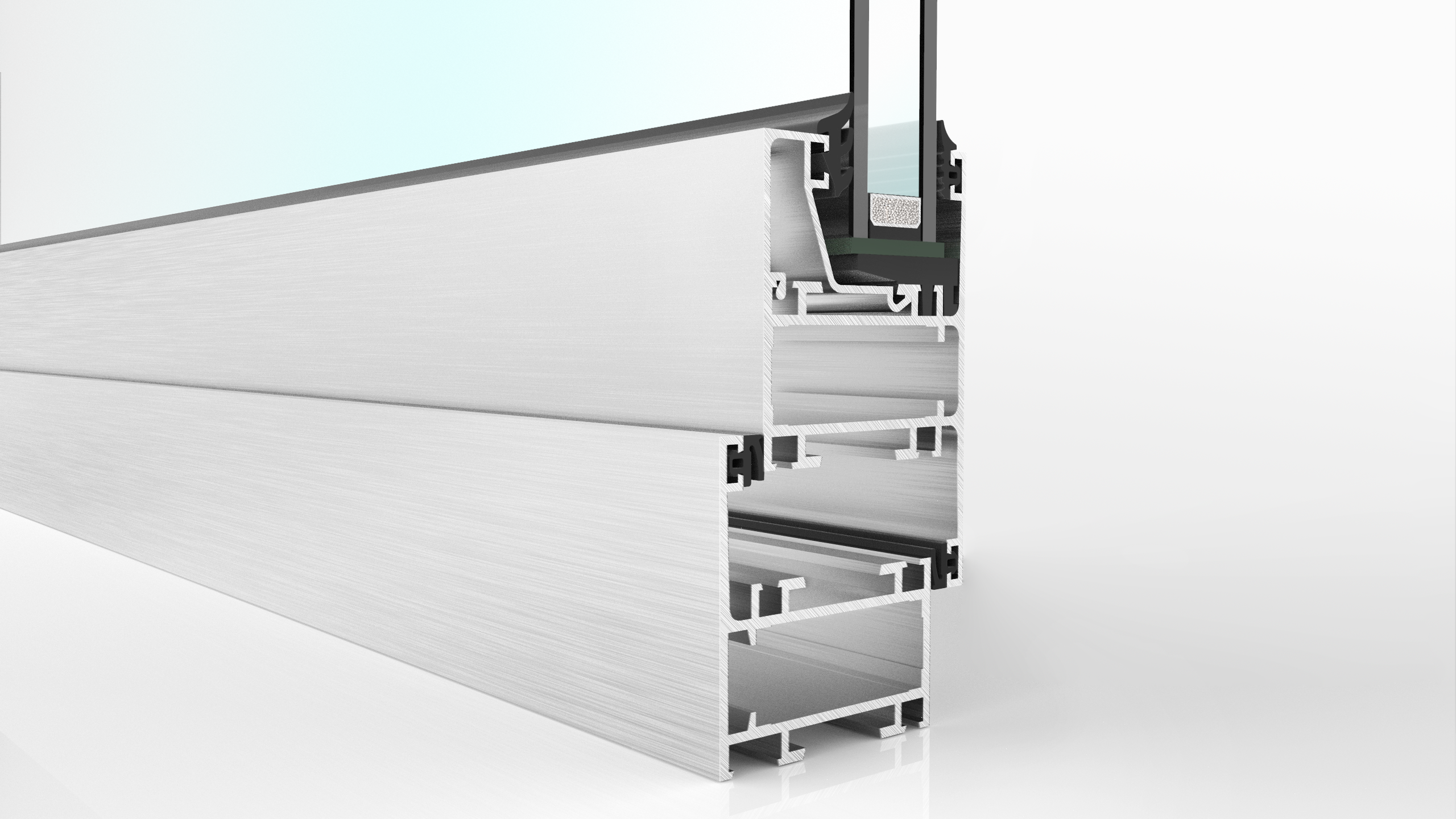

The 45DS is a 45 mm, non-insulated window system that offers optimized design, yet affordable solution for all construction types requiring good weather performances.
Its simple appearance and clean lines suit the modern environment design requirements. Its wide choice of applications and technical solutions makes it ideal for all types of residential and commercial establishments. The 45 DS casement is the ideal system for exterior joinery in tropical and hot climates.
- OVERVIEW
- TECHNICAL DATA
- DOWNLOAD COLLATERAL
| 45DS | |
|---|---|
| Performances | |
| Uw value W/m²K (Double glazing) : | / |
| Uw value W/m²K (Triple glazing) : | / |
| Size limits | |
| frame_dimension : | 45mm |
| Sash dimension (mm) (H max x W max) : | 45mm |
| Min glass thickness (mm) : | 4mm |
| Max glass thickness (mm) : | 30mm |
| Maximum sash load (kg) : | 130KG for open in，46KG for open out |
| Solutions | |
| Inward opening : | yes |
| Outward opening : | yes |
